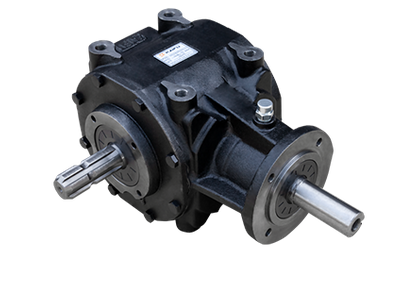

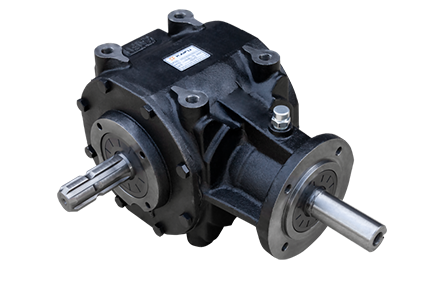

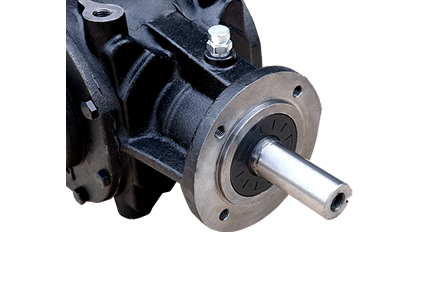

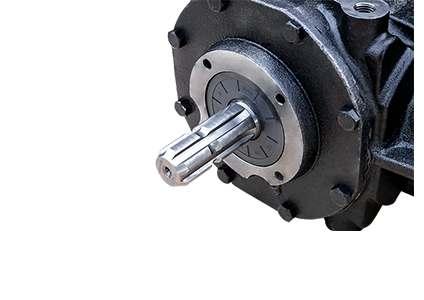

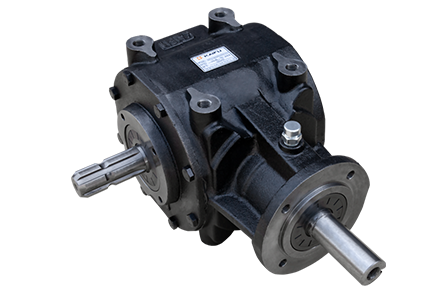

This is a 1 to 2.83 ratio agricultural gearbox with free wheel, which is mainly used for Flail Mower. This flail mower gearbox uses cast iron housing,alloy steel carburized bevel gear and drive shaft.Gearbox bevel gears are driven at right angles.The gearbox has an input horsepower of 75HP, an input speed of 540rpm and an output torque of 340Nm.
KAIFU can offer all kinds of flail mower gearboxes from 25HP to 102HP.
KF75
KF025R290Z0100
