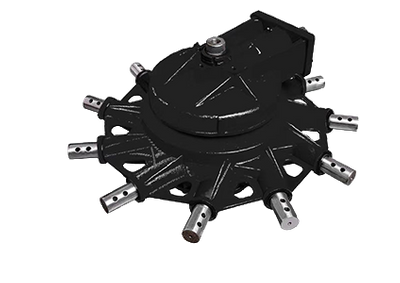

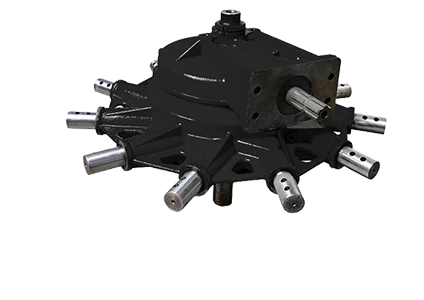

Gearbox For Rotary Rakes This is rotary rake gearbox of 11 arms. Application: Single Rotary Hay Rakes, Double Rotary Hay Rakes Gearbox uses cast iron housing , helical gears, transmission ratio 8.55:1, input speed 540 rpm, output speed 63 rpm, output maximal torque 312 Nm . Rotary rake gear box can be divided into left rotation and right rotation, two 11 arm gear box machine with a working area of 8-9 meters.
KF11
KF041R266Z0600
